Docker Registry implementation design document

Goals

Provide Docker container registry as a LambdaStack service. Registry for application containers storage, docker image signs and docker image security scanning.

Use cases

Store application docker images in private registry. Sign docker images with passphrase to be trusted. Automated security scanning of docker images which are pushed to the registry.

Architectural decision

Comparison of the available solutions

Considered options:

Feature comparison table

Feature Harbor Quay.io Portus
Ability to Determine Version of Binaries in Container Yes Yes Yes
Audit Logs Yes Yes Yes
Content Trust and Validation Yes Yes Yes
Custom TLS Certificates Yes Yes Yes
Helm Chart Repository Manager Yes Partial Yes
Open source Yes Partial Yes
Project Quotas (by image count & storage consumption) Yes No No
Replication between instances Yes Yes Yes
Replication between non-instances Yes Yes No
Robot Accounts for Helm Charts Yes No Yes
Robot Accounts for Images Yes Yes Yes
Tag Retention Policy Yes Partial No
Vulnerability Scanning & Monitoring Yes Yes Yes
Vulnerability Scanning Plugin Framework Yes Yes No
Vulnerability Whitelisting Yes No No
Complexity of the installation process Easy Difficult Difficult
Complexity of the upgrade process Medium Difficult Difficult

Source of comparison: https://goharbor.io/docs/1.10/build-customize-contribute/registry-landscape/ and also based on own experience (stack installation and upgrade).

Design proposal

Harbor services architecture

enter image description here

Implementation architecture

Additional components are required for Harbor implementation.

  • Shared storage volume between kubernetes nodes (in example NFS),
  • Component for TLS/SSL certificate request (maybe cert-manager?),
  • Component for TLS/SSL certificate store and manage certificate validation (maybe Vault?),
  • Component for TLS/SSL certificate share between server and client (maybe Vault?).
  • HELM component for deployment procedure.

Diagram for TLS certificate management:

enter image description here

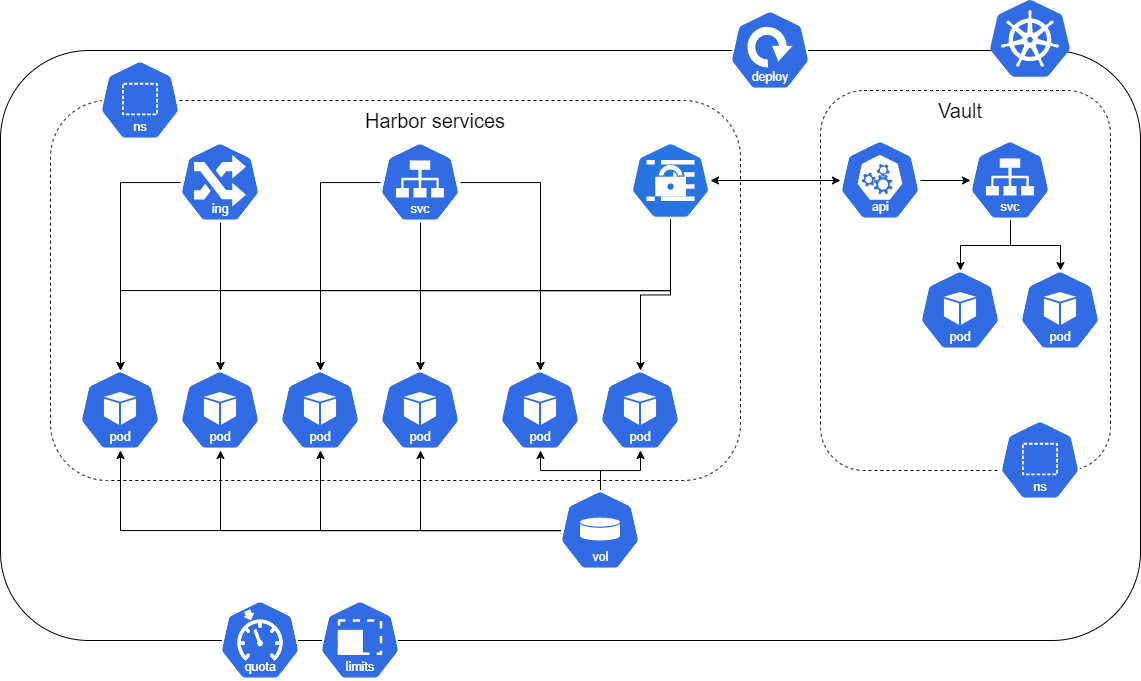

Kubernetes deployment diagram:

enter image description here

Implementation steps

  • Deploy shared storage service (in example NFS) for K8s cluster (M/L)
  • Deploy Helm3 package manager and also Helm Charts for offline installation (S/M)
  • Deploy Hashicorp Vault for self-signed PKI for Harbor (external task + S for Harbor configuration)
  • Deploy "cert request/management" service and integrate with Hashicorp Vault - require research (M/L)
  • Deploy Harbor services using Helm3 with self-signed TLS certs (for non-production environments) (L)
  • Deploy Harbor services using Helm3 with commercial TLS certs (for prod environments) (M/L)
